Radial Stacker Conveyor
Controlled Stacking. Continuous Coverage.
Self-propelled stacking conveyor with extendable stinger and arc slewing for precise heap shaping.

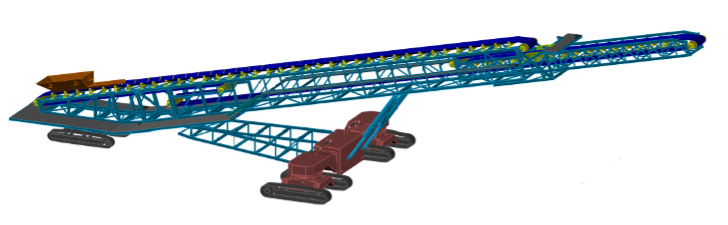

Carmaky’s Radial Stacker Conveyor is a self-propelled tracked machine with an extendable stinger and full slewing capability. It receives ore from the Horizontal Index Conveyor and places material across the heap leach pad while working through retreat stacking cycles.
Specifications
| Standard length | 54 m module |
|---|---|
| Slew range | 120° standard, up to 180° |
| Stinger extension | 11 m, consisting of 8.5 m sweep and 2.5 m final extension |
| Mobility | Tracked and self-propelled under full load |
| Boom movement | Luffing for variable discharge height |
| Typical retreat steps | 4 × 8.5 m, approximately 34 m total |
| Belt widths | 600–1500 mm |
| Capacity | Approximately 300–2,000 tph, dependent on ore and configuration |
Key Benefits on Site
- Controlled Heap Shaping
Builds consistent arced stockpiles across cells.
- Continuous Retreat Stacking
Retreats while material flow continues through the stacking train.
- Tracked Movement and Levelling
Tracks, slews and levels on suitable rugged terrain.
- Extendable Coverage
The extendable stinger maintains placement coverage during retreat cycles.
- System Integration
Works in coordination with the Horizontal Index Conveyor and complete Carmaky stacking train.
System Role: Where It Fits
The Radial Stacker Conveyor is the final conveyor in the stacking system. It receives ore from the Horizontal Index Conveyor and places material across the pad during retreat stacking operations.
Typical flow:
Feed source → Ramp Conveyor → Grasshopper string → Transverse Conveyor → Horizontal Index Conveyor → Radial Stacker Conveyor
Common Applications
- Heap Leach Stacking with Retreat Cycles
Final ore placement while the stacking system retreats across the pad.
- Controlled Heap Construction
Building controlled shaped ore heaps through tracked, slewing and luffing movements.
- Stockpile Placement Across Lift Levels
Controlled material placement across suitable lift levels and operating areas.
Standard Features
- Dual-track undercarriages, with one rear and two front track assemblies
- Hydraulic luffing boom and extendable stinger
- Slewing arc with programmable speed and indexing
- Auto-levelling on terrain up to 5°
- Generator-ready control panel
- Built to operate under full load during relocation
- Local support from South Africa
Options & Integrations
- Custom stinger extension lengths
- Quick-connect power and control umbilicals
- Onboard generator and power changeover kit from mains to generator
- Survey alignment markers for the retreat path
- Belt covers
Options depend on the selected configuration and project requirements.
