Transverse Conveyor
Designed for Precision Feed and Continuous Flow
Powered transfer conveyor for continuous feed into Horizontal Index systems.

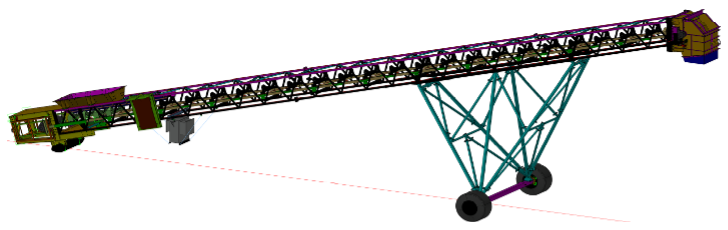

The Carmaky Transverse Conveyor bridges the Grasshopper Conveyor string to the Horizontal Index Conveyor. A powered drive and repositioning wheel arrangement support consistent discharge and practical movement during cell changeovers or pad retreats.
Specifications
| Standard length | 30 m module |
|---|---|
| Belt widths | 600–1500 mm |
| Height | Engineered for Horizontal Index Conveyor handover height |
| Capacity | Approximately 300–2,000 tph, dependent on ore and configuration |
Key Benefits on Site
- Dedicated Handover
Provides the dedicated feed into the Horizontal Index Conveyor.
- Powered Discharge
Uses a powered drive for smooth and consistent material transfer.
- Quick Repositioning
Wheel configuration supports practical repositioning as the stacking arrangement changes.
- Retreat Stacking Integration
Works with the Horizontal Index Conveyor, Grasshopper string and Radial Stacker as part of the complete stacking train.
System Role: Where It Fits
The Transverse Conveyor is placed at the end of the Grasshopper string and provides the dedicated handoff to the Horizontal Index Conveyor.
Typical flow:
Ramp Conveyor or Grasshopper Conveyor → Grasshopper string → Transverse Conveyor → Horizontal Index Conveyor → Radial Stacker
Common Applications
- Heap Leach Systems with Index Conveyors
Dedicated transfer into Horizontal Index Conveyor arrangements.
- Dynamic Pad Operations
Mobile transfer for suitable pad layouts requiring periodic repositioning.
- Retreat Stacking Systems
Handover between the Grasshopper string and retreat stacking equipment.
- Elevated Bridge Conveyor Feed
Transfer into bridge conveyor arrangements engineered for the required handover height.
Standard Features
- Wheel mounted with loader, dozer or telehandler towing point
- Configured to feed the Horizontal Index Conveyor
- Frame design similar to the Grasshopper Conveyor for system continuity
- Special wheel set for off-axis repositioning
- Integrated skirting and spillage control
- Local support from South Africa
Options & Integrations
- Quick-connect power and control umbilicals
- Walkways
- Belt covers
- Powered and manual bogey options for quicker repositioning
Options depend on the selected configuration and project requirements.
Heap Leach Resource Centre
Explore practical guides, operational insights and technical articles covering heap leach material handling, equipment selection and stacking system operation.
Industry Guides
Clear introductions to heap leach methods, terminology and stacking approaches.
Operations Guides
Practical guidance for moving, configuring and operating mobile equipment.
Technical Articles
Deeper explanations of material behaviour and system design considerations.
Download the Transverse Conveyor Brochure
Download the Transverse Conveyor brochure for the equipment overview, specifications, benefits, applications, standard features and integration options.
Frequently Asked Questions
Here are some common questions we get asked at Carmaky.
What is a Transverse Conveyor?
A Transverse Conveyor is a powered transfer conveyor used to move material from the Grasshopper Conveyor string to the Horizontal Index Conveyor. It acts as the dedicated handoff point between the mobile conveying system and the retreat stacking equipment.
Why is a Transverse Conveyor used in a heap leach stacking system?
The Transverse Conveyor provides a controlled transfer point between the upstream conveying route and the Horizontal Index Conveyor. It helps maintain continuous material flow while supporting repositioning and retreat stacking activities.
Where does the Transverse Conveyor fit within the stacking train?
The Transverse Conveyor is normally positioned at the end of the Grasshopper Conveyor string and immediately upstream of the Horizontal Index Conveyor. Typical flow: Feed Source → Ramp Conveyor or Grasshopper Conveyor → Grasshopper String → Transverse Conveyor → Horizontal Index Conveyor → Radial Stacker.
Can the Transverse Conveyor be relocated during operation?
Yes. The Transverse Conveyor is designed to operate as part of a mobile stacking system and can be repositioned as operational requirements and pad progression dictate.
What equipment typically works with a Transverse Conveyor?
The Transverse Conveyor is designed to integrate with Ramp Conveyors, Grasshopper Conveyors, Horizontal Index Conveyors and Radial Stackers as part of a complete heap leach stacking system.
Are Transverse Conveyors only used for heap leach applications?
No. Although Transverse Conveyors are commonly used in heap leach stacking systems, they may also be applied wherever mobile bulk material handling systems require a dedicated transfer point between conveyor arrangements.
Discuss Your Transverse Conveyor Requirements
Provide the application, material, capacity, required handover height, conveyor arrangement and site conditions so Carmaky can review the duty and develop a suitable Transverse Conveyor configuration.
